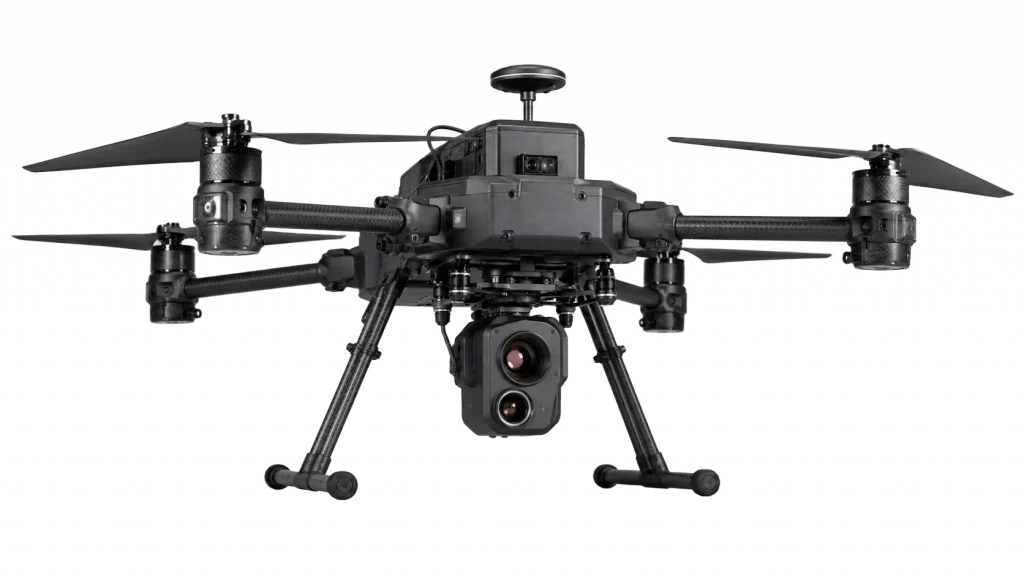

AeroScan L6 Thermal Inspection System
Long-range industrial UAV with integrated LiDAR and RGB mapping payload
640×512
Thermal Resolution
Yes
Radiometric
2 °C
Measurement Accuracy
-20 °C
Temperature Min
550 °C
Temperature Max
48 MP
RGB Camera
4 ×
Optical Zoom
From$24,900
Final pricing depends on payload configuration, batteries,
accessories, positioning options, software, and support requirements
Request a Quote
Tell us about your requirements and we’ll provide pricing and configuration details.
Ready-to-Deploy
Verified Specifications
U.S.
Support
NDAA Compliant
On this page:
Specifications
Software
Workflow
FAQ
Software and Data Workflow
The mission continues after landing. A professional workflow turns a field operation into information that can be reviewed, delivered, and integrated.

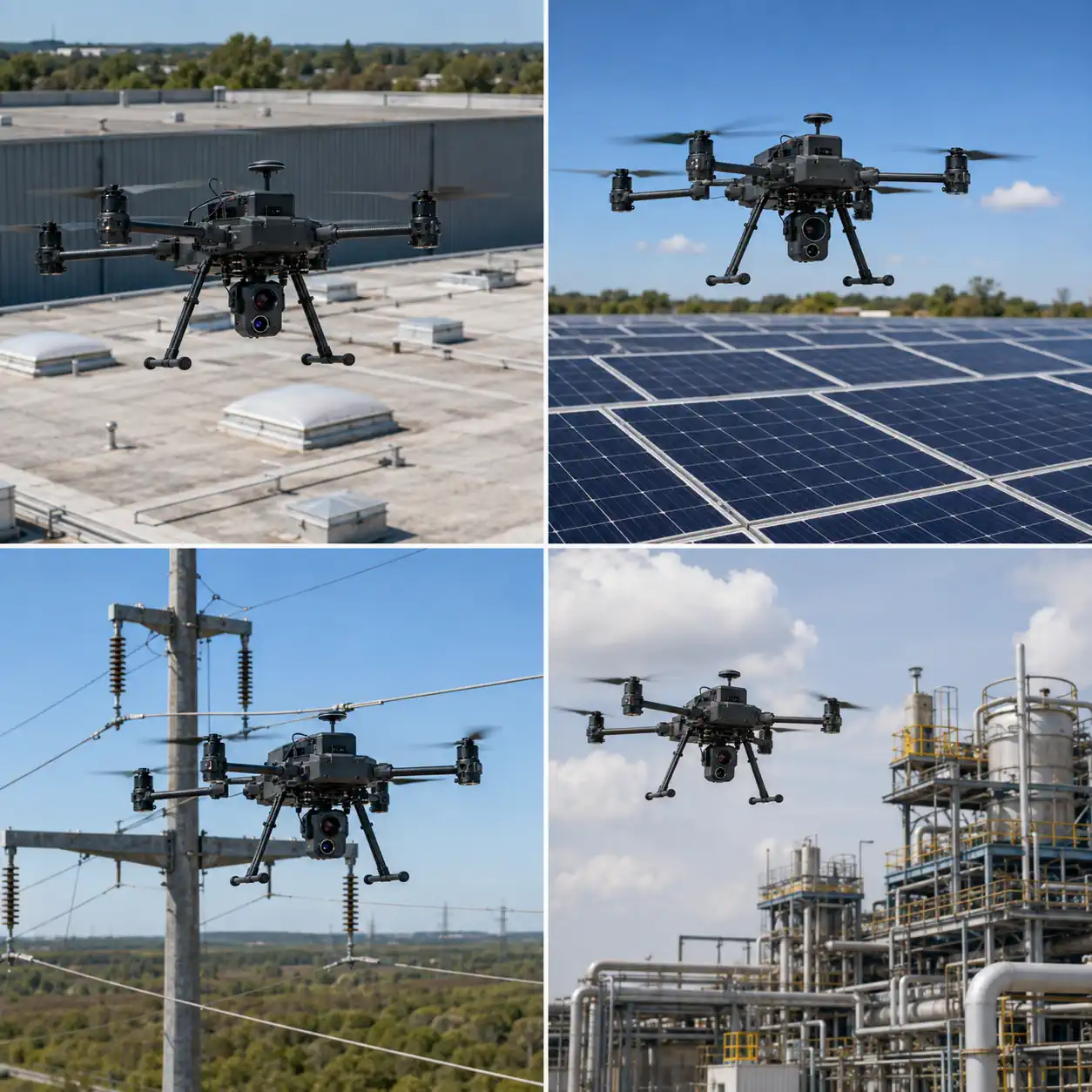

Roof Inspection
Capture thermal and visual data across commercial roofing systems to identify temperature anomalies, moisture-related patterns, heat loss, and visible surface defects without requiring full manual roof access.
Solar Inspection
Inspect large solar installations using combined thermal and RGB imaging to identify abnormal heat patterns, damaged modules, visible defects, and areas requiring closer review.
Utility Inspection
Collect thermal and visual imagery of electrical and utility assets from a safe working distance. The configuration supports anomaly detection, condition documentation, and repeatable inspection workflows.
Building & Construction Inspection
Inspect facades, roofs, structural elements, and active construction areas using thermal and RGB imaging. The system supports building diagnostics, progress documentation, and access to difficult inspection points.
Specifications
Review the key technical specifications of this drone configuration, including aircraft performance, positioning systems, and thermal and RGB imaging capabilities.
Aircraft
Aircraft Type
Multirotor
Defines the aircraft platform and its basic flight configuration.
Flight Time
47 min
Maximum stated airborne time per flight for this configuration.
Operating Range
9.3 mi
Maximum stated operating distance supported by the aircraft and control link.
Payload Capacity
2.5 kg
Maximum payload weight the aircraft platform is designed to carry.
Frame Size
780 mm
Overall platform size, useful for transport, deployment, and operating-space planning.
Max Wind Speed
12 m/s
Maximum stated wind speed for operation of the aircraft.
Positioning
Positioning Systems
GNSS / RTK / PPK
Positioning technologies available for navigation and repeatable data capture.

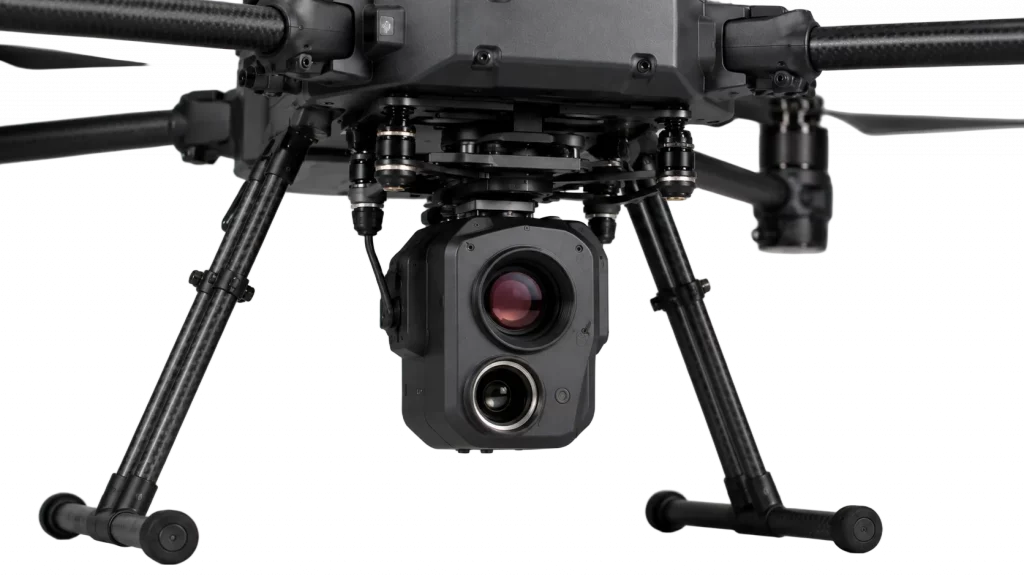

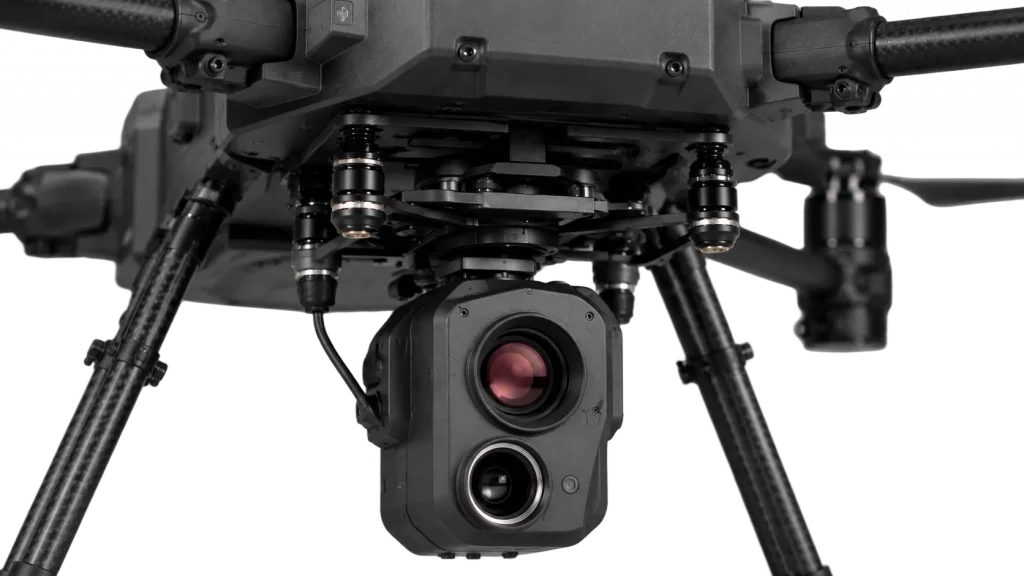

Thermal & RGB Imaging
RGB Camera Resolution
48 MP
Determines the level of visible-image detail available for inspection and documentation.
Optical Zoom
4 ×
Provides closer visual detail while maintaining greater distance from the inspected asset.
Thermal Resolution
640 × 512
Determines the spatial detail available in the thermal image.
Radiometric
Yes
Indicates whether temperature values are recorded for individual pixels in the thermal image.
Temperature Accuracy
2 °C
Stated temperature-measurement accuracy of the thermal sensor.
Temperature Range
-20 to 550 °C
Temperature interval the thermal sensor is specified to measure.
Compatible Software
This thermal + RGB configuration supports software for mission planning, thermal analysis, photogrammetry, mapping, and inspection reporting. Final compatibility depends on the selected flight controller, thermal payload, supported data formats, and final system configuration.
QGroundControl
Mission planning and ground control software for compatible PX4- and MAVLink-based aircraft. Supports waypoint missions, automated inspection routes, flight monitoring, vehicle configuration, and repeatable data-collection operations.
Mission Planner
Ground control software for ArduPilot-based aircraft. Supports automated missions, flight monitoring, parameter configuration, telemetry review, and post-flight log analysis.
FLIR Thermal Studio
Thermal analysis and reporting software for compatible radiometric FLIR datasets. Supports temperature measurements, annotations, thermal image review, analysis, and professional inspection reporting.
Pix4Dmatic
Photogrammetry software for processing RGB aerial imagery into orthomosaics, 3D models, measurements, and georeferenced datasets for inspection, mapping, and site documentation workflows.
AeroScan L6 LiDAR FAQ
What is the AeroScan L6 designed for?
The AeroScan L6 is designed for professional LiDAR surveying, terrain mapping, forestry, utility corridor mapping, construction, mining and other applications that require accurate three-dimensional geospatial data.
How accurate is the LiDAR system?
The integrated LiDAR payload is designed for approximately ±2.5 cm system accuracy under suitable operating conditions. Final survey accuracy depends on flight altitude, GNSS conditions, calibration, trajectory processing and ground control procedures.
Can it map terrain beneath vegetation?
Yes. The multi-return LiDAR sensor can record multiple reflections from a single laser pulse, helping identify both vegetation and ground surfaces through gaps in the canopy. Actual ground penetration depends on vegetation density and survey conditions.
Does the system support RTK and PPK?
Yes. The AeroScan L6 supports RTK and PPK positioning workflows for accurate aircraft trajectory reconstruction and georeferencing of LiDAR and RGB datasets.
How long can the drone fly with the LiDAR payload?
Typical mapping endurance with the LiDAR payload is approximately 34–38 minutes per flight. Actual endurance varies with payload configuration, wind, temperature, flight speed and battery condition.
Does the system include an RGB camera?
Yes. The mapping payload includes a 24 MP RGB camera that can capture synchronized imagery alongside LiDAR data for colorized point clouds, site documentation and additional photogrammetric processing.
What data can be produced from a LiDAR survey?
Depending on the processing workflow, collected data can be used to generate georeferenced point clouds, digital terrain models, digital surface models, contours, cross-sections, stockpile volumes and other GIS or CAD deliverables.
Is the AeroScan L6 NDAA compliant?
The platform is available in different hardware configurations. NDAA-compliant configuration should be selected when the project or customer requires compliant components and sourcing.
